Water deionization systems in cabinet housing that provide a complete solution from tap to ultrapure water direct from a potable water supply and are ideal for any cases when ultrapure water is required. Deionized water helps to maintain product safety and integrity.

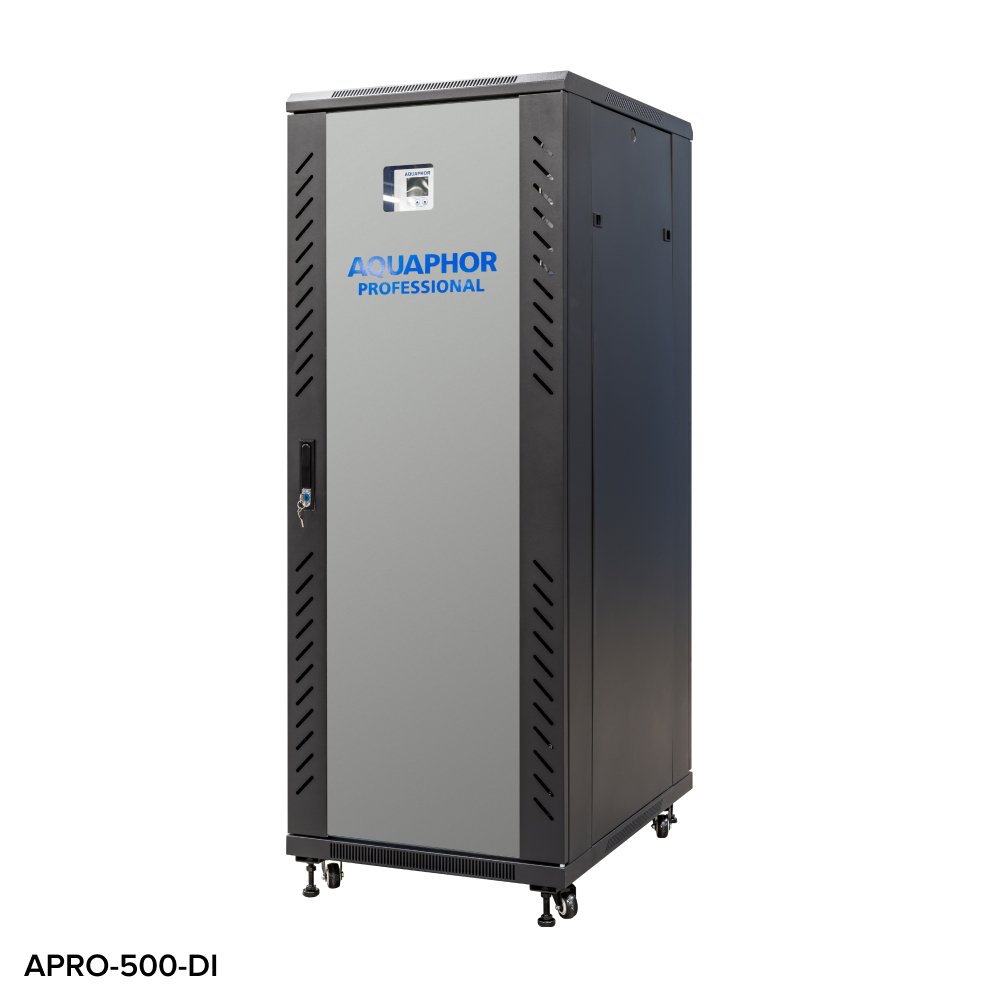

Fully automated AQUAPHOR APRO-100-DI and APRO-500-DI RO systems with advanced drainage system provide a steady ultrapure water supply.
• A conductivity measuring unit ensures that only high-quality water passes to the storage tank
• A two-step prefiltration system for mechanical impurities removal
• An indicator box measures the membrane pressure
• Water supply monitoring sensors
Fully automated AQUAPHOR APRO-100-DI and APRO-500-DI RO systems with advanced drainage system provide a steady ultrapure water supply.
• A conductivity measuring unit ensures that only high-quality water passes to the storage tank
• A two-step prefiltration system for mechanical impurities removal
• An indicator box measures the membrane pressure
• Water supply monitoring sensors
APRO-100-DI and APRO-500-DI suits for
Medical and Pharmaceutical
Testing Laboratories
MicroChip Production
Extra benefits
More reasons why this high technology solution gets along with your requirements
Continuous access to high-quality deionized water supply
Fully automatic
Space saving design
Technical specification of APRO-100-DI and APRO-500-DI
| MODEL | APRO-100-DI | APRO-500-DI |
|---|---|---|
| Permeate capacity, LPH | 100 | 500 |
| Permeate accumulation tank volume, liters | 100 | 560 |
| Supply pump flow | max 3 000 LPH | max 3 000 LPH |
| Supply pressure | max 4 bars | max 4 bars |
| Mixed bed ion-exchange resin volume, liters | 18 | 50 |
| Cabinet dimensions, mm | 600 × 800 × 1600 | 600 × 800 × 1600 |
| Accumulation tank, mm | build in (100l) | 1000 × 750 × 1500 (450l) |
| Power supply | 230 V, 50 hz | 230 V, 50 hz |
| Connection Sizing (inlet, outlet, drainage) | 1” / ½” / ½” NPTF | 1” / ½” / ½” NPTF |
